WEMIX GROUP · High-Performance Concrete Batching Plant Solution

Stable & Efficient · Intelligent & Eco-Friendly · Maximizing Your Investment Value

Designed for various projects, commercial concrete plants, and precast component factories. Daily output 150-2000 m³+, increasing overall ROI by 25%.

Perfectly Matched for Your Application Scenarios

HZS series concrete batching plants are efficient, energy-saving, and environmentally friendly concrete production equipment. Featuring modular design, quick installation, and easy operation, they are suitable for various construction projects, road bridges, and water conservancy engineering.

Overall Parameters

Product Model	HZS25
Production Capacity	25m³/h
Mixer Type	JS500 Twin-Shaft Forced Mixer
Batching Machine	PLD800 Batching Machine
Control System	Fully Automatic Computer Control / Manual Control
Installed Power	Approximately 50.25 kW
Footprint	Customizable
Operating Temperature	-10℃ ~ 40 (Can be upgraded to winter mixing plant)

Detailed Configuration

Conrete Plant Overview	Model	HZS25
	Max. Productivity	25 m³/h
	Discharge Height	3.8 m (customizable)
	Batching Cycle Time	72 s
	Size	116931306017245 mm (Default)
	Installed Power Power	50.25 kW (Default)
Mixing System	Model	JS500
	Mixer Type	Twin-Shaft Forced Mixer
	Discharge Capacity	500 L
	Mixing Blades	2*7 pcs
	Mixer Shaft Speed	35 rpm
	Maximum Aggregate Size	60 mm
Batching System	Model	PLD800
Pneumatic System	Air Compressor Model	1.0-7
	Rated Discharge Capacity	1.67 m³/min
	Rated Discharge Pressure	0.8 MPa
	Motor Power	5.5 kW
Weighing System	Aggregate Weighing Accuracy	±2%
	Cement Weighing Accuracy	±1%
	Water Weighing Accuracy	±1%
	Admixture Weighing Accuracy	±1%

Note: The above technical specifications are for standard configuration. Please contact customer service to inform us of your specific needs and obtain the latest configuration information. Any changes or upgrades to technical specifications will not be notified separately.

Six Core Systems Deep Analysis

hzs25 Concrete batching plant mixing system

1. Mixing System

High‑efficiency and Uniform Mixing: Twin‑shaft forced mixing ensures short mixing time and high uniformity.

Long‑lasting Wear Resistance: Blades and liners are made of high‑chromium alloy, offering excellent wear resistance and extending service life by 30%.

Fast and Clean Discharge: Large discharge gate design allows quick, residue‑free unloading and prevents material buildup.

Triple‑stage Shaft‑end Sealing: Professional sealing structure completely prevents slurry leakage and ensures reliable operation.

Aggregate batching system for hzs25 concrete plant

2. Batching System

High‑precision Measurement: Electronic scale combined with sensors achieves batching accuracy within ±2% error.

Multi‑bin Feeding: Supports multiple metering methods to accommodate various aggregate ratios.

Rapid Discharge: Precisely controlled conveyor belt enables fast discharge with good sealing to prevent leakage.

Dual‑mode Operation: Supports automatic/manual switching to meet different operating conditions.

hzs25 Concrete plant conveying system with lifting hopper

3. Aggregate Conveying System

Hopper‑type Feeding: Uses a lifting hopper for feeding, featuring compact structure and small footprint.

Smooth and Efficient Operation: Winch‑driven lifting ensures stable, low‑noise, and energy‑efficient operation.

Strong Adaptability: Suitable for sites with limited space or requiring quick installation.

Easy Maintenance: Simple structure, low failure rate, and convenient daily maintenance.

Precision weighing system for hzs25 concrete batching plant

4. Weighing System

High‑precision Weighing: Equipped with internationally renowned brand sensors for stable and reliable measurement.

Intelligent Compensation Functions: Auto‑tare, zero tracking, and temperature compensation ensure accurate data.

Anti‑interference Transmission: Shielded cables and digital filtering technology guarantee stable signal transmission.

Multiple Safety Checks: Automatic calibration before and after production ensures precise batching for every cycle.

HZS25 Concrete Batching Plant cement supply system with screw conveyor

5. Cement Supply System

Fully Enclosed Dust‑free Conveying: Screw conveyor with sealed design prevents dust emission and meets environmental standards.

Accurate Metering and Feeding: Independent cement scale provides high‑precision measurement, coupled with automatic arch‑breaking device.

Anti‑blocking and Anti‑moisture Design: Special screw blades and moisture‑proof structure prevent clogging and caking.

Flexible Multi‑silo Configuration: Supports simultaneous feeding from 1–2 cement silos for diversified production.

HZS25 Concrete Batching Plant Control system with PLC and computer interface

6. Centralized Control System

Fully Automated Control: PLC and touchscreen control enable one‑click start/stop and simple operation.

Intelligent Recipe Management: Supports storage of over 100 recipes for quick calling and flexible production.

Real‑time Data Monitoring: Production data are displayed, recorded, and printed in real time, ensuring full traceability.

Fault Self‑diagnosis: Smart alarm system provides automatic fault alerts and troubleshooting suggestions.

Production Process & Quality Assurance

Raw Materials: Using high-quality steel from Baosteel/Ansteel, key parts plate thickness increased by 20%
Welding Process: Robotic automatic welding, weld seam flaw detection, ensures structural strength
Surface Treatment: Sandblasting derusting Sa2.5 grade + epoxy zinc-rich primer + polyurethane topcoat, anti-corrosion over 10 years
Factory Testing: 72-hour no-load test + 8-hour load test, ensures perfect condition upon delivery

Choose wemix Choosing success

Full Lifecycle Service Support

Step 1: Professional Planning

Free foundation drawings & layout planning, engineer site survey

Step 2: Installation Guidance

Professional installation team on-site guidance, 15-30 days quick commissioning

Step 3: Training & Delivery

Free operator training, complete technical documentation delivery

Step 4: Lifetime Maintenance

2-year warranty for core components, 24-hour response, original spare parts supply

Selected Cases

Sri Lankan construction company

1 set HZS90 batching plants | Continuous stable supply for 18 months

Nigerian concrete sales company

1 set HZS120 batching plant | Environmental protection Class A enterprise

Uzbekistan Concrete Sales Company

Employing Sicoma mixers, 4*25 cubic meter batching machines, customized models

Congo Concrete Sales Company

1set HZS90 batching plants | Continuous stable supply for 11 months

Poland Customer

Our exceptional quality led him to refer many European clients to us.

Russian construction company

1sets HZS75 export project | 2-year operation with zero major failures

Certifications & Partners

International Certifications: ISO9001 Quality Management System, CE Certification, Russian GOST Certification

Patent Technology: 12 National Invention Patents, 28 Utility Model Patents

Core Component Suppliers: Siemens (Electrical Control), SEW (Reducer), Schneider (Electrical)

Partner Brands: Sicoma,SANY,ZOOMLION,XCMG (New and Used Concrete Mixer)

Get Your Customized Batching Plant Solution

✅Free Configuration Plan & ROI Analysis

✅Factory Visit or Customer Site Tour Arrangement

✅Senior Engineer One-on-One Consultation, Custom Design Support

Hotline: +86-185-3997-2666

Technical Consultant: Engineer Liu +86-181-3737-5477

Export Sales: [email protected]

WhatsApp: +86-185-3997-2666

Please provide: Project type, estimated capacity, site dimensions, environmental requirements. We will reply with detailed plan within 24 hours.

hzs75-concrete-batching-plant

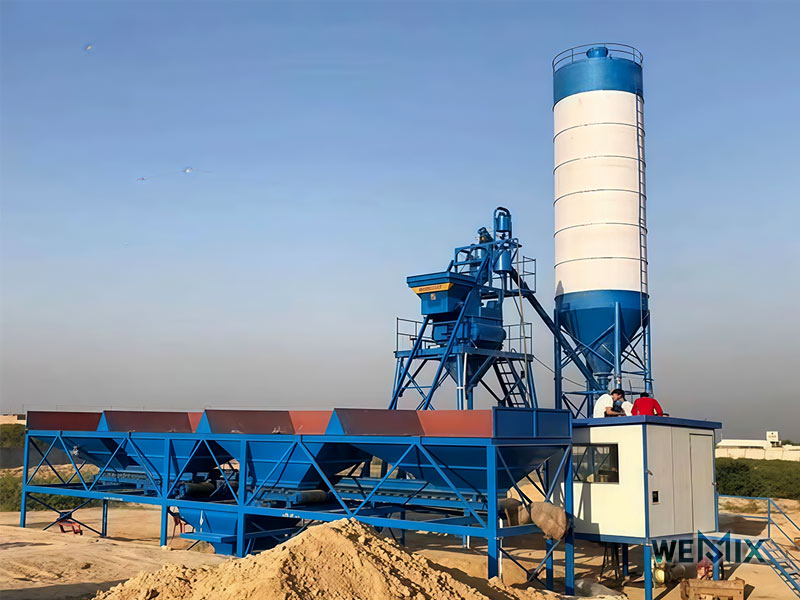

HZS75 Concrete Batching Plant
